Thermo King Clutch (77-1663)

Part number 42550426



HTAC

HTAC 1301, HTAC1301, HTAC-1301
30-18663
Designation
Clutch pulley
Specifications
B2 ø 195 mm + A2 ø 225 mm
Original number
TK . . . 4125D76H01 / 77-1663
Refrigerant
-
OEM number
THERMO KING . . . 77-1663
Thermoking TK426,TK430 clutch,226/197mm,AABB,24V

Electromagnetical clutch bus with coil / coupling

Compressors: X 426, X 430 thin shaft.

Compressor clutch for bus air conditioner

(2A) Ø 226mm 2x13mm

(2B) Ø 197mm  2x17mm

Coil: 24V

Rated power: 62W
Thermo-king 77-1663, 771663, 771-663

77-2521, 772521, 772-521

45-0271, 450271, 450-271

45-271, 45271

70-0105, 700105, 70-0105

70-105, 70105

77-1229, 771229, 771-229

107-150, 107150, 10-7150

45-1389, 451389, 451-389

45-1227, 451227, 451-227
Model Number: TK 430-2A/2B- 226/197
Type: Compressor
Rated Voltage: 24V
Consumed power: Max 60W
Torque: Min 240N.M
Max speed: 3800r.p.m
$750.95EX GST

Description

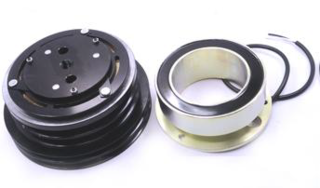

Thermo King Clutch

Thermo King TK426, TK430 clutch, 226/197mm, AABB, 24V

Electromagnetical clutch bus with coil / coupling

Compressors: X 426, X 430 thin shaft.

Compressor clutch for bus air conditioner

(2A) Ø 226mm 2x13mm

(2B) Ø 197mm  2x17mm

Coil: 24V

Rated power: 62W

Suits models

Models Types
Thermo King Volvo FM9

Cross Reference Numbers

This part is compatible or replaces part numbers:
THERMO KING 77-1663, 771663, 771-663,107-0365 77-2521, 772521, 772-521 45-0271, 450271, 450-271 45-271, 45271 70-0105, 700105, 70-0105 70-105, 70105 77-1229, 771229, 771-229 107-150, 107150, 10-7150 45-1389, 451389, 451-389 45-1227, 451227, 451-227 HTAC HTAC 1301, HTAC1301, HTAC-1301 Autoclima 40455105
